Inicio /Productos/Máquina de vulcanización de caucho/Rubber Plastic Industry Best Easy To Maintain Rubber Press Forming Hydraulic Vulcanizer Machine For Rubber Product Processing Machinery

Rubber Plastic Industry Best Easy To Maintain Rubber Press Forming Hydraulic Vulcanizer Machine For Rubber Product Processing Machinery

1.0 Sets
MOQ
Rubber Plastic Industry Best Easy To Maintain Rubber Press Forming Hydraulic Vulcanizer Machine For Rubber Product Processing Machinery
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Vulcanizer
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot product 2021
Warranty of core components: 2 years
Core Components: PLC, motor, bearing, gear, pump
Warranty: 1 Year
Key Selling Points: long service time
Power (kW): 5.5 kW
Weight (KG): 10000 KG
Applicable Industries: Rubber plastic industry
Showroom Location: Canada, India, America
Machine type: Rubber vulcanizer
Model type: customized type
Frame or column structure: frame or column
Automatic grade: Full automatic
working layer: 1-6layer
Certificación: CE ISO
After warranty service: Video technical support, online support, spare parts,
Sealing: Keep no oilkage
Machine color: BLUE/ Green/ as your request
Voltage: Customized
Información básica
Certificación: CE ISO
Model Number: customized type
Pago y Envío Términos
Supply Ability: 30 Set/Sets per Month
Descripción de producto

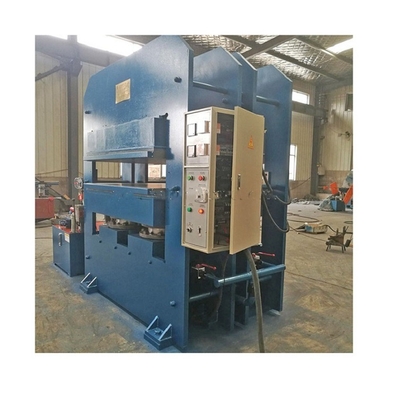

1.Structure This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet. Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opeing device. 2. Operation Being a frame structure and upward pressing type, the hating plate opens by self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heaitng plate close while the hydraulic oil provides the pressure. This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrade ability, the cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purprose. By moving the operational handle of the control value to the two different positions, the heating plate can open and close. It uses the electric pipe for heating, thusmakes the workshop clean with easy and reliable operation. 3. Technical parameter Frame type plate vulcanizing press
Type
XLB-DQ(F)1200×1200×2
XLB-DQ(F)1300×1200×1
XLB-Q(F)1200×2500×1
XLB-Q(F)1500×2000×1
XLB-Q(F)2000×3000×1
Total pressure (MN)
3.15
5.60
7.50
10.00
18.00
Plate size(mm)
1200×1200
1300×12000
1200×2500
1500×2000
2000×3000
Daylight(mm)
200
400
400
400
400
Layer
2
1
1
1
1
Piston stroke(mm)
400
400
400
400
400
Plate unit area pressure (kg/ cm2)
22
21.15
25
33.5
30
Main motor power (KW)
5.5
8
9.5
11
26
Overall dimension (L×W×H) (mm)
1685×1320×2450
2000×1860×2500
2560×1700×2780
2810×1550×3325
2900×3200×2860
Weight (kg)
9500
17000
20000
33000
66000
QINGDAO HANGSEN INDUSTRY AND TRADE CO., LTD was established in 1967，have employee more than two hundred, which have two factories. we are manufacturer for package machine and rubber machine, which have more than forty years’ experience. Packaging machinery includes high speed flute laminator, middle speed flute laminator, 5 ply flute laminator, cardboard laminator, flip flop stacker machine as well as other related paper package machines. For rubber machine, we mainly produce rubber kneader series, rubber mixing mill series, rubber extruder and strainer series, rubber powder line, rubber reclaim sheet line, rubber tube line, rubber mat line, tire making line and so on, we can make more than 200 series rubber machines, including environment protect machines, we also can make rubber machine according to customers requirement. Till now, HANGSEN have exported to more than forty counties. including USA, Greece, Spain, Poland, France, Italy, Algeria, Egypt, India, Russia, Argentina, Vietnam, Brazil, Indonesia, Thailand and so on. The company uses exquisite and professional technology to serve all customers and is widely praised and appreciated by customers.
